Products center

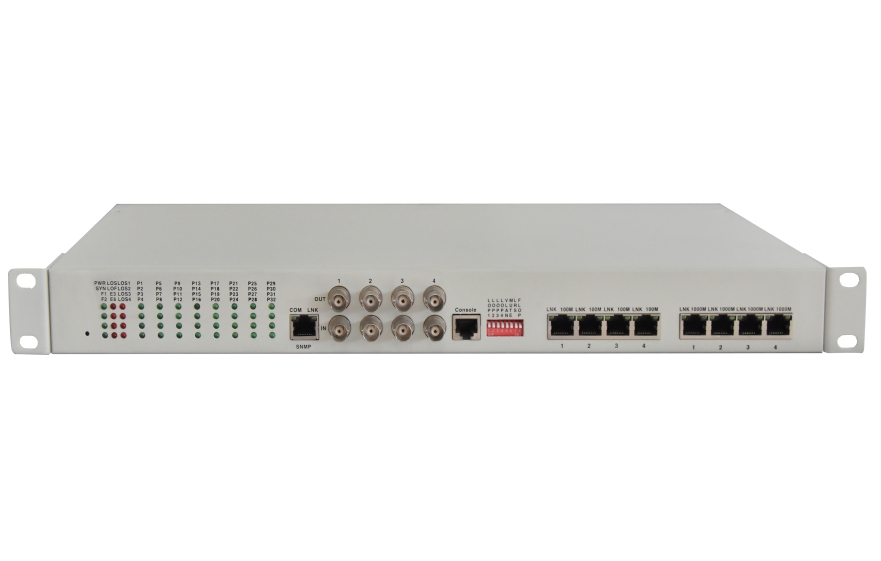

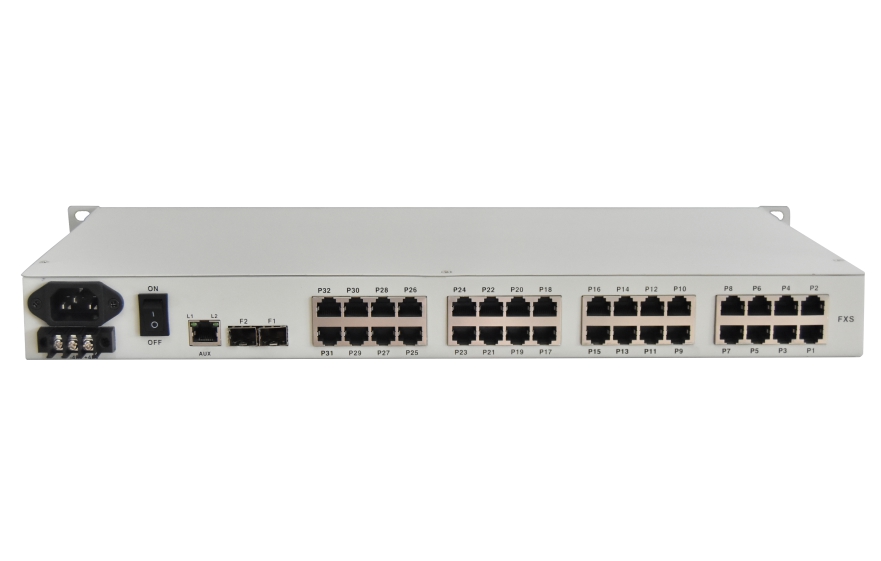

32*voice+4E1+4FE+4GE ( Physical Isolation) Fiber MUX

Type:FCP-O32E4F4pG4p/FCP-S32E4F4pG4p Message

Description:This product is the companys 6.0G optical transmission platform based on the development of point-to-point optical transmission equipment. This channel provides 32*Voice interface; 4 E1 interface; 4*FE interface 4*GE interface; 4*FE each

Product Description
  This product is the company's 6.0G optical transmission platform based on the development of point-to-point optical transmission equipment. This channel provides 32*Voice interface; 4 E1 interface; 4*FE  interface 4*GE interface; 4*FE each Ethernet electrical port has its own independent 100M bandwidth ; 4*GEt each Ethernet electrical port has its own independent 1000 bandwidth all 8 Ethernet total bandwidth of 4400M through a fiber transmission 4*FE signal completely independent 4*GE signal is completely independentthat is physical isolation; an expansion port (can be extended 1 ~ 2 asynchronous data such as RS232/485/422/TTL etc. can also be 1- 4 Dry contact); support console interface and SNMP management interface and 2 SFP optical port (1 + 1 optical backup); equipment internal circuit part of the whole digital circuit the whole work is reliable stable low power consumption High integration small size easy to install and maintain.
Functional Properties
◆  based on independent intellectual property rights of integrated circuits fiber optic cable total bandwidth of 5.0G;
◆  E1 interface in line with ITU-T G.703 recommendations the use of all-digital clock recovery and smooth phase-locked technology;

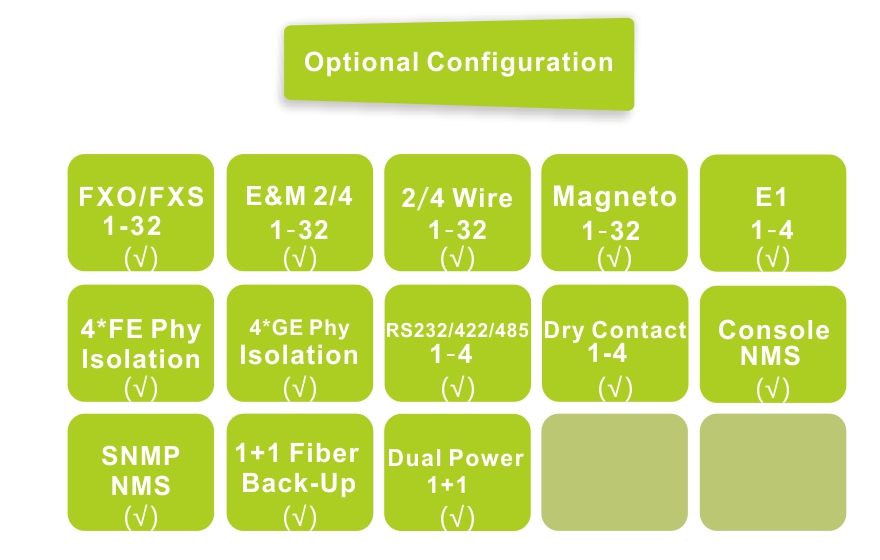

◆  An expansion interface (AUX1/2) can be extended 1~2 asynchronous data such as RS232/RS485/RS422/TTL signal; or 1 to 4 dry contact and so on;
◆  4*FE is 100M full duplexeach Ethernet electrical port has its own independent 100M bandwidth physical isolation;
◆  4*GE is 10/100/1000M full/half duplex fully adaptive 4*Gigabit Ethernet each has independent 1000M bandwidth and physical isolation;
◆  Each Ethernet port supports Auto-MDIX (cross / direct line adaptation);
◆  Fast and Gigabit Ethernet support VLAN long packet transmission can support IEEE802.1Q protocol with the use of the switch products And can support the maximum packet length 10240 giant frame Ethernet packet
◆  32 voice access support for caller ID / reverse polarity billing/fax function;
◆  Both sides of the device support FXO+FXS hybrid access;
◆  Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interfaceFXO port plug into PBXFXS port is connected to the user's telephone;
◆  With Console management interface and SNMP management interface;
◆  Optical port without relay transmission distance of up to 2 to 80 km; to provide 1 +1 optical port backup function dual optical port backup function to ensure that business never interrupted;
◆  Variety of power options: AC220V DC-48V/DC24V etc .; support AC+DC; AC+AC;DC+DC and other dual power mode;
◆  DC-48V/DC24V power supply with automatic polarity detection installation without distinction between positive and negative.
◆  Telephone/Ethernet/Serial interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;
Technical Parameters

◆   Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)



    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆   Dimension

    Product Size:    Mini Type    216X140X31mm(WXDXH)

                          19inch       485X200X45mm(WXDXH)

     Piece Weight :    mini 1KG / 19inch  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

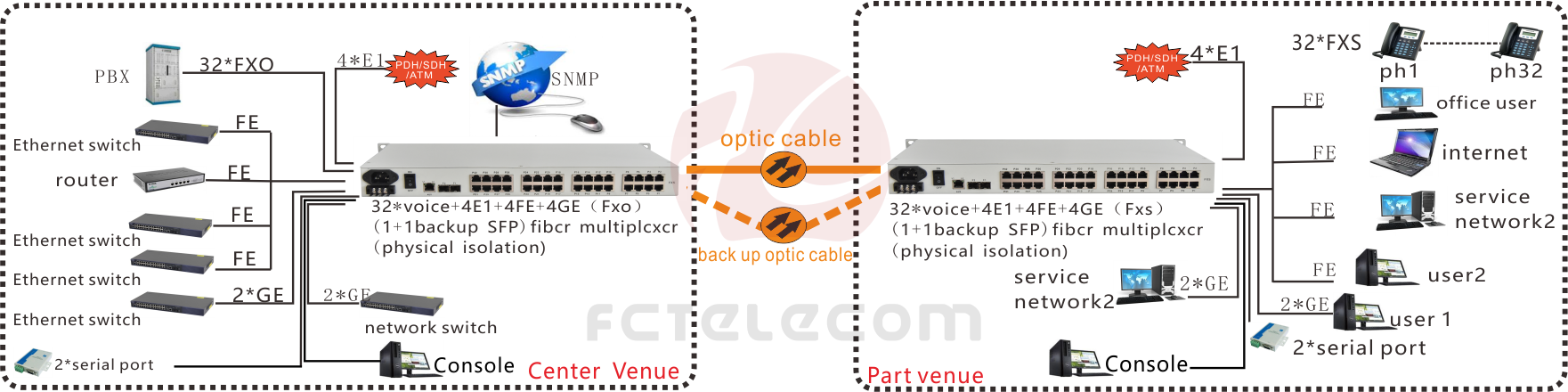

Application Scheme
DataSheet Download
?
