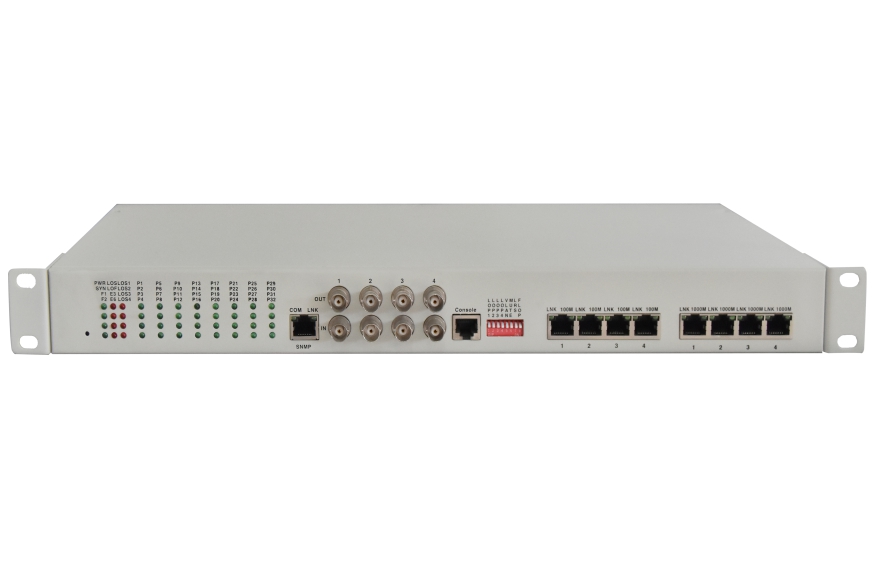

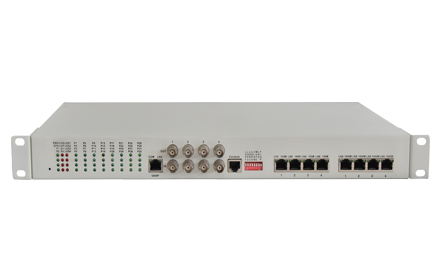

Fiber-32Voice + 4E1 +2GE+ 4FE+2*serial data Mux(Physical iso

Type:FCP-O32E4WF4G2R2C1/FCP-S32E4WF4G2R2C Message

Description:32 * telephone，4E1，2*serial data4 channel Ethernet physical isolation（Band width 100M），2channel Ethernet physical isolation（Band width 1000M）Console or SNMP，Support 6U rackmount

Product Description
     This device is a kind of our company developed point to point transmission equipment based on specific VLSI，it provides 32 channel voice，4 E1 interfaces 4channel 100M Ethernet interface4channel 1000M Ethernet interfacethe 4channel 100M EthernetEach Ethernet port has its own independent bandwidth; 4 gigabit Ethernet port，1-2 as a group 3-4 port as a group each group has a separate gigabit bandwidththe 6 channel Ethernet total bandwidth is 2400Mtransmission over one fiber 4 Fast Ethernet signal is completely independenttwo group Gigabit Ethernet signal is completely independent non-interfering independently of each other that is physical isolation; and one expansion interface. 1 Extended service interface (can be used as 1~2*RS232 / RS485 / RS422 asynchronous data 1~4*dry contact signal) the application is very flexible.support SNMPconsoleSFP 1+1 fiber backup.
Functional Properties
Ø based on proprietary integrated circuit;
Ø E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;
Ø An expansion interface (AUX1/2)can be extended 1~2channel asynchronous data such as RS232 / RS485 / RS422 / Manchester codes; or 1~4channel dry contact      signal 1~2channel E1 (Thus this device E1 channel up to 6) 1-2 channels voiceor 2/4wire audio etc.
Ø 4channel 100M Ethernet full / half duplex fully adaptive，Each Ethernet port has its own independent bandwidth，physical isolation
Ø 4 gigabit Ethernet port，full / half duplex fully adaptive，1-2 as a group 3-4 port as a group each group has a separate 1000M bandwidth，physical isolation
Ø 100M and 1000M Ethernet support transmission long VLAN packets Can be used with the switch support IEEE802.1Q protocolit can support up to 9K Jumbo frame      packet length Ethernet packets
Ø Support FXO/FXS EM2/4 audio Magnet telephone Interface FXO port docking with program-controlled switchboard FXS port connected to the user's telephone;
Ø 1~32channel Voice access support caller ID function and reverse polarity billing functions;
Ø Support Telephone Number mutual function of each site;
Ø Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);
Ø Unrepeated transmission distance of up to 2 to 100 km;
Ø Multiple power mode options: AC220V DC-48V / DC24V etc;
Ø Telephone interface with lightning protection lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs the peak output voltage 6KV open standards.

Technical Parameters
u   Fiber
Number of Fiber Ports:2
Optical Wavelength:
850nm/1310nm for multi- mode optical
1310nm/1550nm for single-mode optical interface
Fiber Core: Single/Dual fiber core
Connector: FC/SC/ST/LC(SFP)
Distance : 20km-120km
Typical output power:
single mode 1310/1550nm: >-9dBm
multi-mode 850nm:>-18dBm
multi-mode 1310nm:>-25dBm
Receiver Sensitivity: -28dBm~- 40dBm
u   E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation:0~6dBm
u   100M Ethernet interface
Interface rate: half/full duplex auto-negotiation
Interface Standard:Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector:RJ45 support Auto-MDIX
u   1000M Ethernet interface
Interface rate: half/full duplex auto-negotiation
Interface Standard:Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector:RJ45 support Auto-MDIX
u   FXS Phone Interface
Ring voltage: 75V
Ring frequency:25HZ
Two-line Impedance:600 Ohm (pick up)
Return loss:40 dB
u   FXO Switch Interface
Ring detect voltage:35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss:40 dB
u   Management Interface
Interface type: RJ45(SNMP NM)
Main features: network management platform can manage every point device and monitor its status (specific configuration and process management software after purchase our company productwe will provides documentation and configuration management software)
u   Working environment
Working temperature:-10°C ~ 50°C
Working Humidity:5%~95 % (no condensation)
Storage temperature:-40°C ~ 80°C
Storage Humidity:5%~95 % (no condensation
