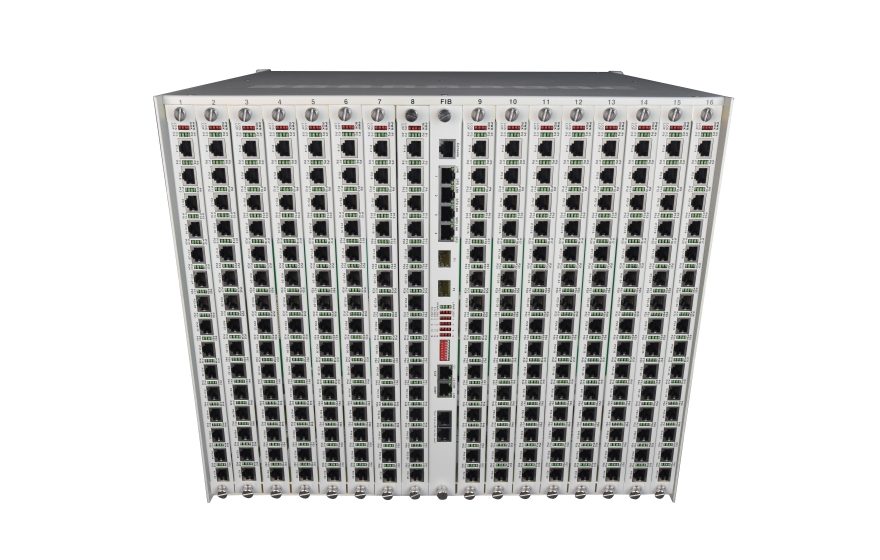

960*Voice RACK Mount Fiber Multiplexer(8U)

Type:FCP-O960/FCP-S960 Message

Description:This series of equipment is designed based on FPGA. The device is 8U chassis, providing 1-960 voice, 4*10/100M Fast Ethernet interface (wire speed 100M) or 4*10/100 / 1000M Gigabit Ethernet interface (line speed 1000M) or 4 physical isolati

Product Description
  This series of equipment is designed based on FPGA. The device is 8U chassis, providing 1-960 voice, 4*10/100M Fast Ethernet interface (wire speed 100M) or 4*10/100 / 1000M Gigabit Ethernet interface (line speed 1000M) or 4 physical isolation 100 Gigabit Ethernet interface (100M per line speed independent bandwidth); can also expand the interface such as RS232 / 485/422 asynchronous data/TTL signal/dry contact signal and other transmission channels, the application is very flexible.
Functional Properties
◆  Card-type design, easy to  replacement, to avoid the overall equipment, a way to solve the problem of machine problems need to replace the whole equipment;
◆  Easy expansion, increase the card can be easy to maintain, change the card can be;

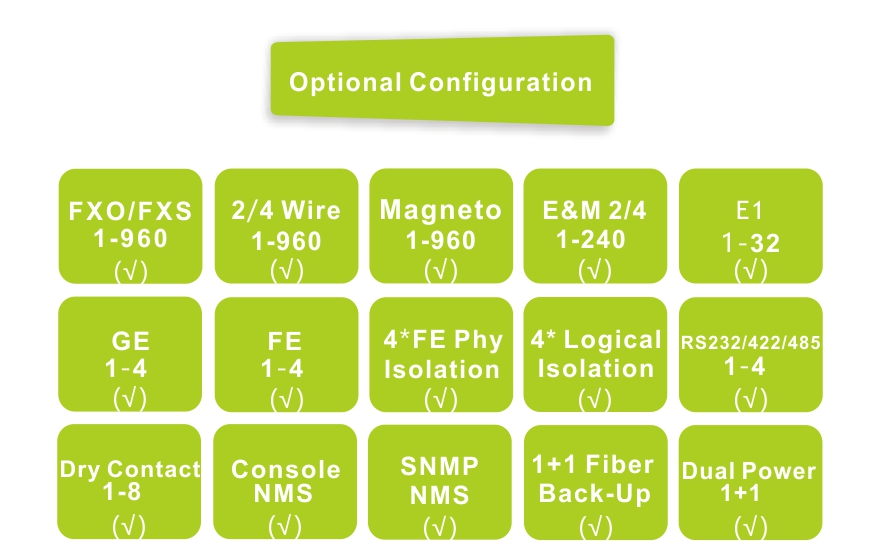

◆  Equipment 8U 19-inch chassis, a total of a optical card with 16 function card, optical card provides 4*FE/4*GE /4*FE physical isolation+optical interface(1+1 backup optional)+4*E1+2 expansion business interface such as RS232/485/422 asynchronous data/TTL signal/dry contact + SNMP network management module, each function card can be inserted 60 FXO/FXS/2 wire audio / magnet phone card;
◆  Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface,FXO port plug into PBX,FXS port is connected to the user's telephone;
◆  1-960 FXO/FXS access, support for caller ID / reverse polarity billing / fax function;
◆  Both sides of the device support FXO+FXS hybrid access;
◆  Have the function of displaying the remote device working status at the local end;
◆  Ethernet interface rate of 100M or 1000M or physical isolation 100M Ethernet optional, full duplex/half duplex adaptive;
◆  No relay transmission distance of up to 2 to 120 km; to provide 1 +1 optical port backup function, dual optical port backup function to ensure that business never interrupted;

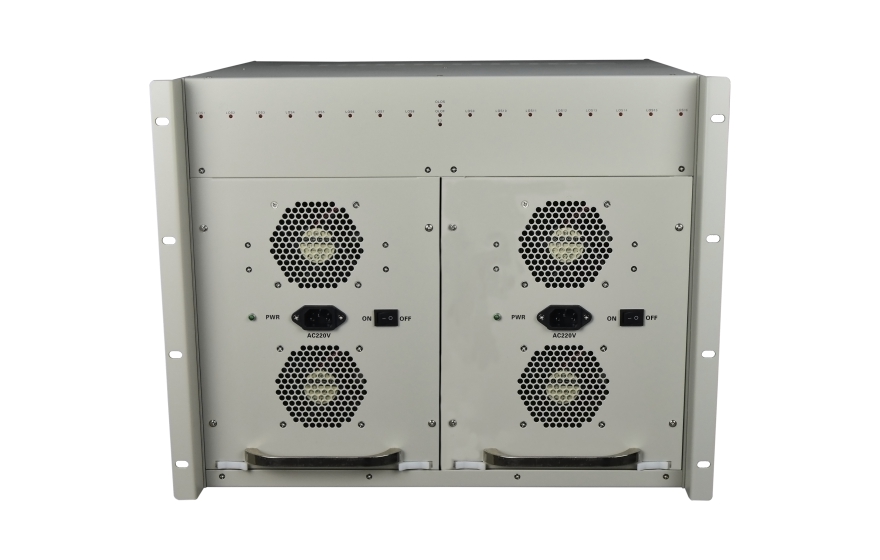

◆  AC220V / DC-48V / DC24V; support AC + DC; AC + AC; DC + DC and other dual power supply mode;
◆  DC-48V / DC24V power supply with automatic polarity detection, installation without distinction between positive and negative;
◆  Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
Technical Parameters

◆   Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)



    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆   Dimension

    Product Size:    Mini Type    216X140X31mm(WXDXH)

                          19inch       485X200X45mm(WXDXH)

     Piece Weight :    mini 1KG / 19inch  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

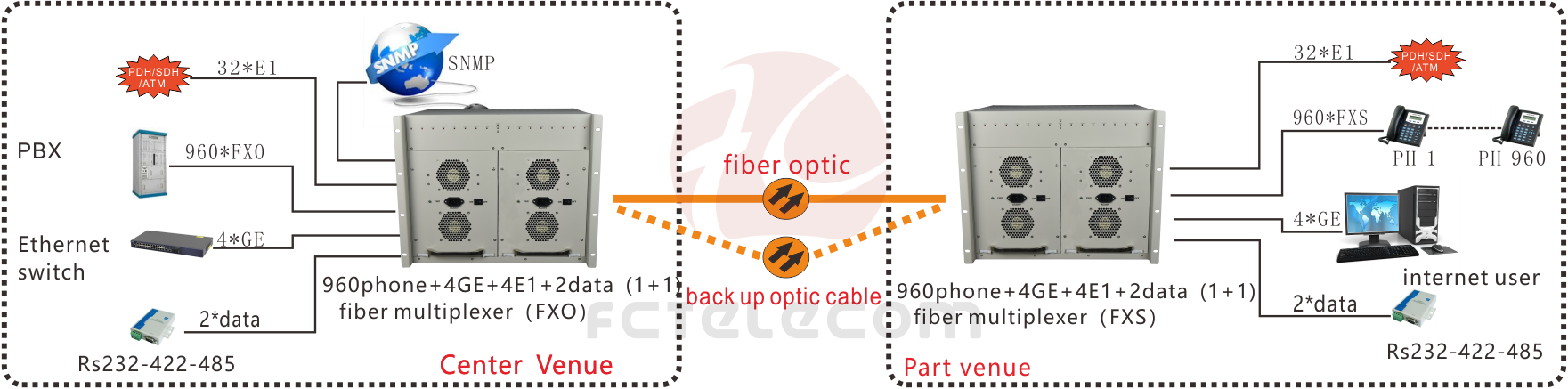

Application Scheme
