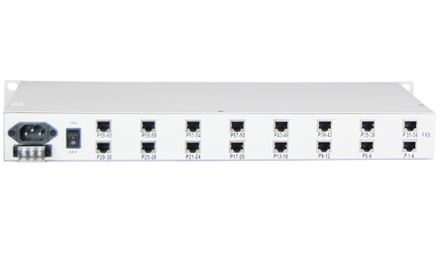

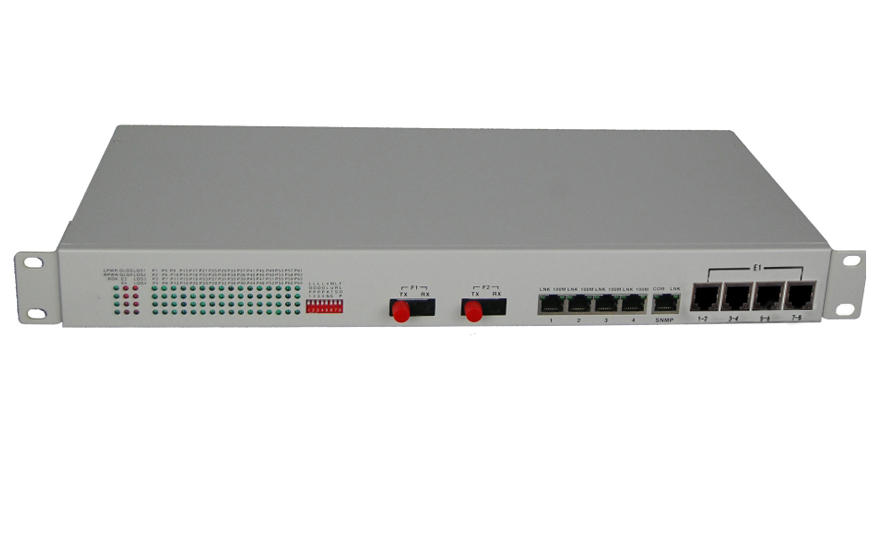

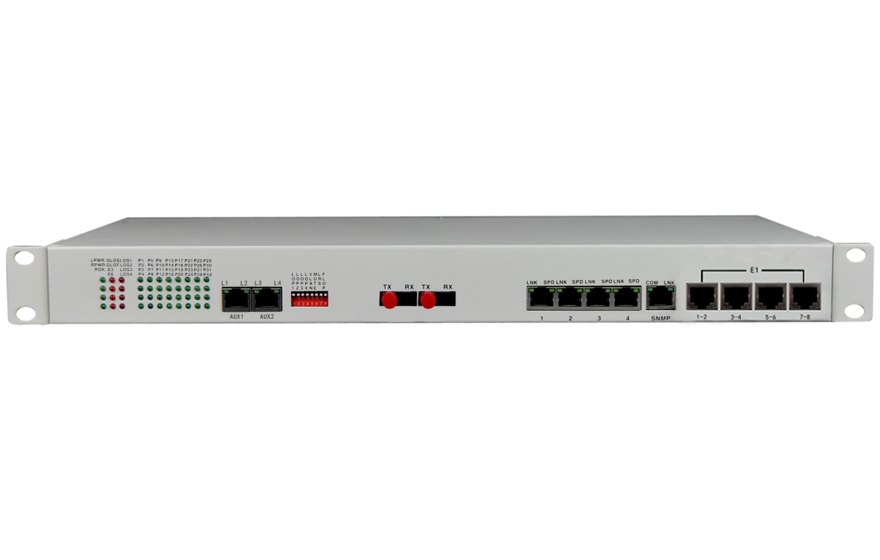

Fiber-60Voice + 4E1 + 4FE Mux(Physical isolation)

Type:FCP-O60E4WF4R4C1/FCP-S60E4WF4R4C1 Message

Description:60 * telephone，4E1，4 * Ethernet physical isolation（Band width 100M），Console or SNMP，Support 6U rackmount

Product Description
           The phone offers 60-way telephone Optical 1 to 4 E1 interfaces 4 physically isolated Fast Ethernet interface (independent bandwidth per line speed 100M). 4 Fast Ethernet ports can connect four different businesses non-interfering.
Functional Properties

Ø based on proprietary integrated circuit;

Ø E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;

Ø support FXO voice port FXS ports and ports EM2 / 4 audio interface magneto telephone interface; FXO port and PBX docking port and

      the user is connected to FXS telephone;

Ø Voice FXO / FXS access support caller ID function and reverse polarity billing functions;

Ø Support Telephone Number mutual function of each site;

Ø providing four expansion interface can be extended from 1 to 4 asynchronous data such as RS232 / RS485 / RS422 / Manchester codes;

      or 1 to 8-way switch 1 to 4-way voice or two / four-wire audio etc.;

Ø Ethernet 10 / 100M full / half duplex fully adaptive independent bandwidth per line speed 100M the total bandwidth can be

      bidirectional 4 * 100M;

Ø Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);

Ø unrepeated transmission distance of up to 2 to 100 km;

Ø multiple power mode options: AC220V DC-48V / DC24V etc;

Ø telephone interface with lightning protection lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs

      the peak output voltage 6KV open standards;

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:    19inch       485X200X45mm(WXDXH)

    Piece Weight :  2.4KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

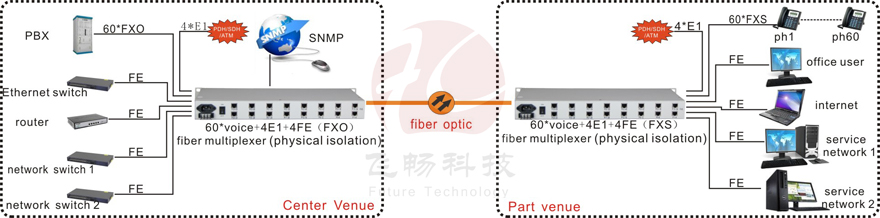

Application Scheme

Applications

DataSheet Download
?
