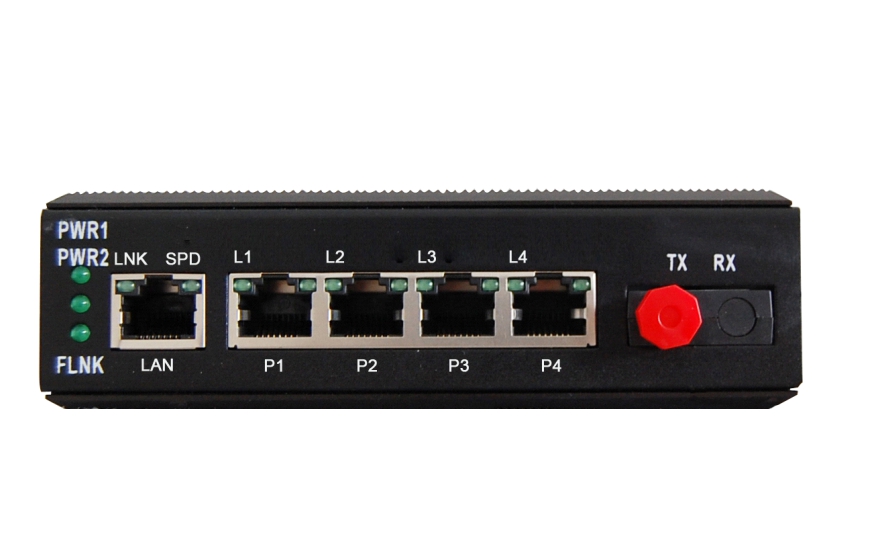

Industrial Rail ４*Voice +1*FE Fiber MUX

Type:FCPG-O4F1/FCPG-S4F1 Message

Description:This series of products, is developed in the companys special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice access, 1*FE interface (wire speed

Product Description
  This series of products, is developed in the company's special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice  access, 1*FE  interface (wire  speed  100M).
Functional Properties
◆  Based on independent intellectual property rights of integrated circuits;
◆  Voice port support FXO / FXS / E&M2-4  / 2-4 wire audio / magnet telephone interface, FXO port and program-controlled switches docking, FXS port and the user's telephone connected;
◆  1-4 voice access, support caller ID / reverse polarity billing / fax function; support each site of the number of features;
◆  1 channel FE Ethernet, bandwidth for the wire speed 100M, automatically adapt to 10/100Mbps environment, easy to upgrade the network;
◆  Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability, MDI / MDI-X adaptive without manual adjustment;
◆  Optical port without relay transmission distance of up to 2 to 120 km;
◆  Support 2U chassis card, support SNMP network management;
◆  Support a wide range of AC and DC input;
◆  Support internal isolation, redundant dual power input;
◆  Power supply support overload protection, anti-reverse protection;
◆  Meet the requirements of industrial four electromagnetic compatibility;
◆  Super lightning protection: anti-lightning, anti-sensor high pressure, anti-surge, etc .;
◆  No fan efficient cooling, reduce the repair time;
◆  IP40 enclosure protection class, able to withstand the harsh environment of the test;

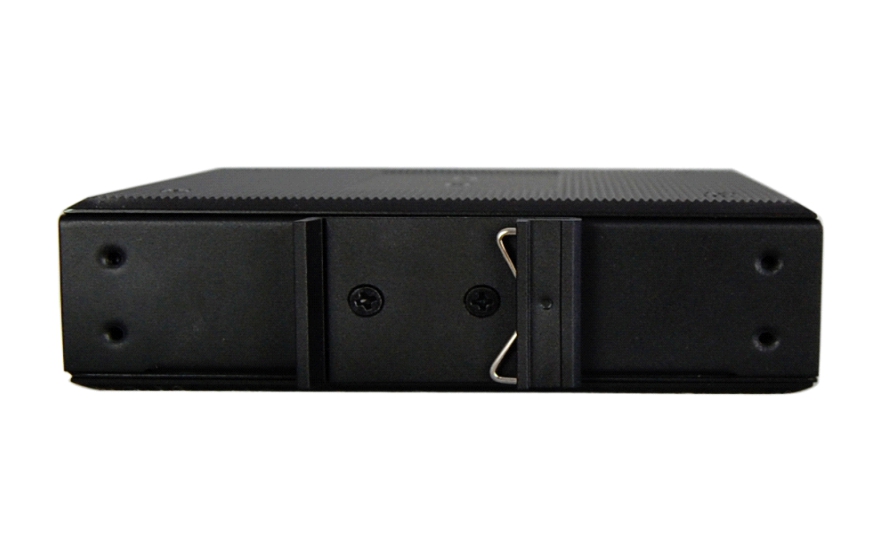

◆  Rail or wall mounted Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃, all models are 100% roasting machine test;
◆  Telephone / ethernet  interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
Technical Parameters

◆   Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)



    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆   Dimension

    Product Size:    Mini Type    216X140X31mm(WXDXH)

                          19inch       485X200X45mm(WXDXH)

     Piece Weight :    mini 1KG / 19inch  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

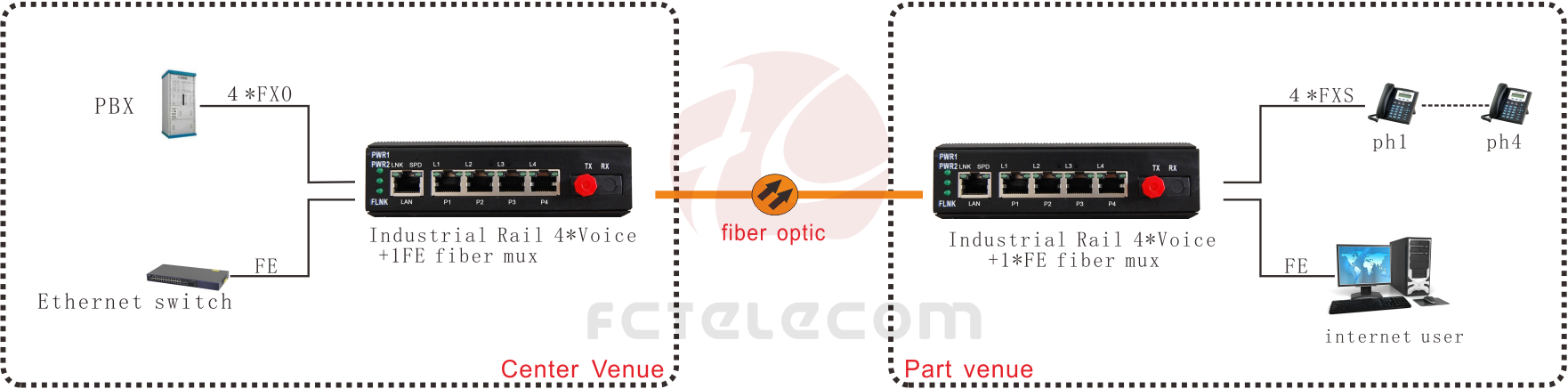

Application Scheme
DataSheet Download
?
