Products center

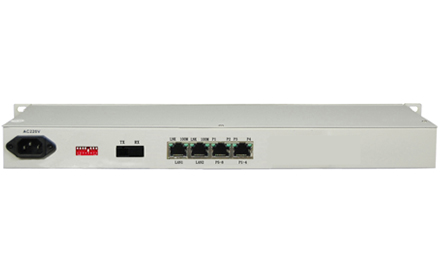

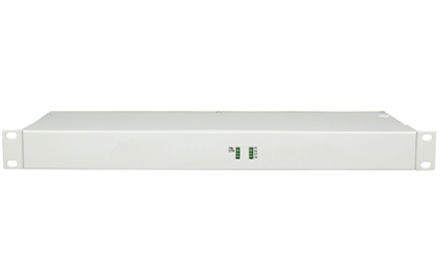

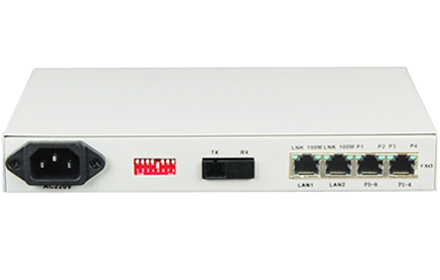

8*POTS+2FE Fiber Mux(Desktop Tpye)

Type:FCP-O8R4/FCP-S8R4 Message

Description:8 * telephone（Desktop Tpye），2*100 Mbps Ethernet， Support 4U rackmount，SNMP

Product Description
              This series is based on the company's proprietary research on VLSI, developed point optical transmission equipment. This product provides four-way telephone; two-way Fast Ethernet interface, support VLAN division. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.
Functional Properties

? Based on proprietary integrated circuit;

? 1 ~ 4-way voice access, support caller ID function and reverse polarity billing functions;

? 2-way Ethernet interface, the rate of 10M / 100M, full / half duplex adaptive, two-way Ethernet can be set to logical isolation;

? support FXO voice port FXS ports and port, FXO port and docking PBX, FXS port is connected to the user's phone;

? Support Telephone Number mutual function of each site;

? optical port unrepeated transmission distance of up to 2 to 120 km;

? multiple power mode options: AC220V, DC-48V / DC24V, etc;

? DC-48V / DC24V power supply with automatic polarity detection function, when installed without distinction

       between positive and negative.


Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         136X131X31mm(WXDXH)

       Piece Weight :    1KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)







Application Scheme

Applications  1



Applications 2



DataSheet Download
?
