Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

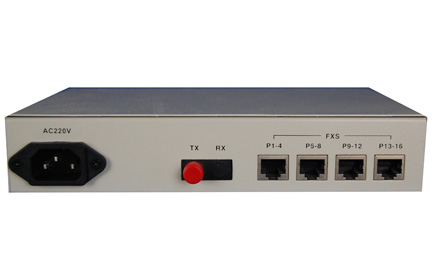

16*POTS Fiber Mux(Desktop Tpye)

Type:FCP-O16/FCP-S16 Message

Description:16 * telephone（Desktop Tpye）, Support 4U rackmount,SNMP

Product Description
             The telephone Optical Desktop provides 16 FXO / FXS telephone, wall-mounted and can provide plug-4U rack, support SNMP network management.
Functional Properties

? Based on proprietary integrated circuit;

? support FXO voice port FXS ports and magneto telephone interface; FXO port and docking PBX,

       FXS port is connected to the user's phone;

? Voice FXO / FXS access, support caller ID function and reverse polarity billing functions;

? Support Telephone Number mutual function of each site;

? unrepeated transmission distance of up to 2 to 120 km;

? 4U rack machines can provide plug-in, available SNMP network management;

? multiple power mode options: AC220V, DC-48V / DC24V, etc;

? telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs,

      the peak output voltage 6KV open standards;

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         216X130X42mm(WXDXH)

       Piece Weight :    1.3KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

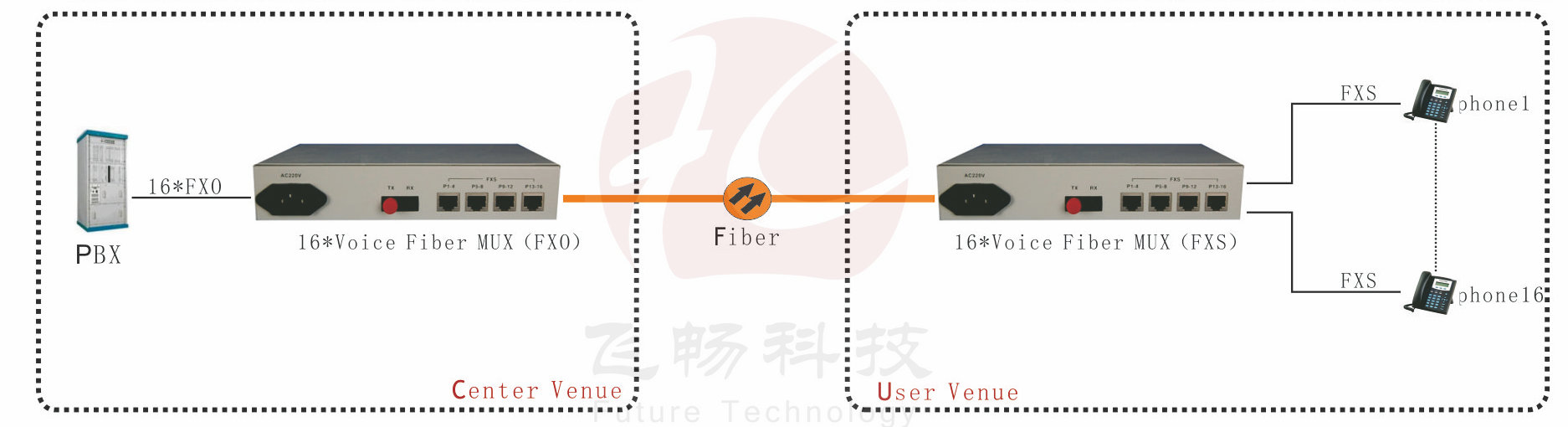

Application Scheme

Applications:


DataSheet Download
?
