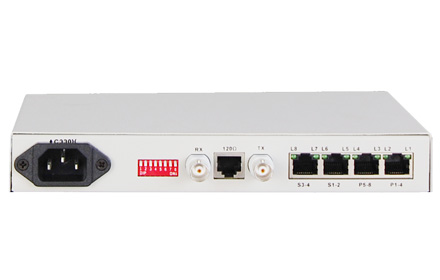

E1-8*POTS + 4RS232 FiberMux(Desktop Tpye)

Type:FCC-E1O8R4/FCC-E1S8R4 Message

Description:E1-8 * telephone+4RS-232/422/485/ Support 4U rackmount

Product Description
                   The equipment for mini there 4U rack card type which provides 8 telephone output or four-way RS232. Equipment electrical part for the whole digital circuits machine reliability stability low power consumption high integration small size easy installation and maintenance. Many customers are telecommunications operators E1 leased lines used in computer networking this equipment can be rented at the E1 line opened a few road phone you can make free calls between headquarters and branch offices of this.
Functional Properties

◆   based on proprietary integrated circuits;

◆   alarm status can be monitored on the end;

◆   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;

◆   support FXO voice port FXS ports and ports EM2 / 4 audio interface FXO port and PBX docking port and the user is

      connected to FXS telephone;

◆   providing four expansion interface can be extended from 1 to 4 asynchronous data such as RS232 / RS485 / RS422 / Manchester codes;

     or 1 to 8-way switch 1 to 4-way voice or two / four-wire audio etc.;

◆   Ethernet interface 10M / 100M full / half duplex fully adaptive support VLAN division;

◆   Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);

◆   8 road voice access support caller ID function and reverse polarity billing functions;

◆   Support Telephone Number mutual function of each site;

◆   E1 signal can be detected as a barrier to the end device is lost or shut E1;

◆   provide two kinds of clock ways: E1 master clock E1 line clock;

◆   provides three kinds of loopback: E1 local loopback (ANA) the Ethernet interface to the remote loopback (DIG)

      command peer Ethernet interface to the local loop (REM);

◆   There are pseudo-random code test function (PATT) to facilitate the opening line which can be when one of E1 BERT to use;

◆   multiple power mode options: AC220V DC-48V / DC24V etc;

Technical Parameters

◆   E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

◆   Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆    EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆    Dimension

    Product Size:    Mini Type    216X140X31mm(WXDXH)

                          19inch       485X200X45mm(WXDXH)

    Simple packaging:  mini   274X193X84mm(WXDXH)

                            19inch    522X198X82mm(WXDXH)

    Piece Weight :    mini 1KG / 19inch  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

Application Scheme

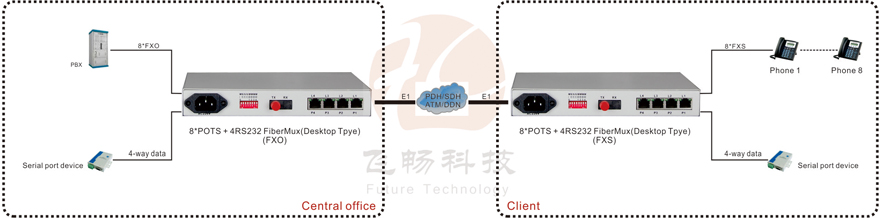

Applications  1

                                                                                          Access ordinary voice services

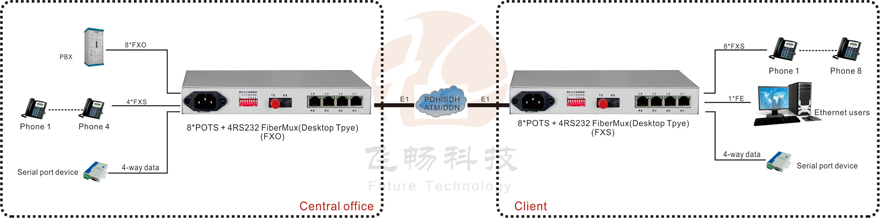

Applications  2

                                                                                                         Access Hotline
