Products center

2FE+4RS232/422/485 Fiber Media Converter

Type:FCM-F2R4 Message

Description:single core optice fiber transmission 2 * 10/100M network port and 4 * RS232/422/485 interface

Product Description

               The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100Base-T UTP and 10/100Base-FX or 10/100 Base-T UTP and 10/100Base-FX and 4 channel RS232/422/485 serial device , the design is excellent for keeping your industrial automation applications running continuously. And each converter comes with a  relay output warning alarm to help prevent damage and loss. All the models are subjected to a 100% burn –in test, and available in models that support a standard operating temperature range of 0 to 50°C.


Functional Properties

? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

? Device provides 2 Ethernet UTP,4 RS232/422/485 serial port. 1 Ethernet optical port

? Support full-duplex and half duplex network communication, with auto-negotiation capability;

? The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol

? Division of VLAN base PORT, this method does not affect the remote device

? 802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

? Provide 4 expansion interface, you can extend 1~4Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;


Technical Parameters

u  Ethernet UTP Interface

Interface rate: 100/1000 M, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

u  Optical Ethernet interface

    Wave Length: 1310nm, 1550nm

    Interface rate: 100 M, half/full duplex

    Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector: FC/SC

    Fiber TransmissionDistance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

    Transmission distance may also be limited by fiber optic bandwidth.

u  Serial Interface

    Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-422 RS-422 (ITU-T V.11)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

    Serial Interface

    RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

    RS-232: RXD, TXD, Signal Ground

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size : 19 inch 1U  483X138X44mm( WX DXH))

    Simple packaging : 19inch 522 X198 X82mm ( WX DXH)

   Piece Weight: 2.1KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

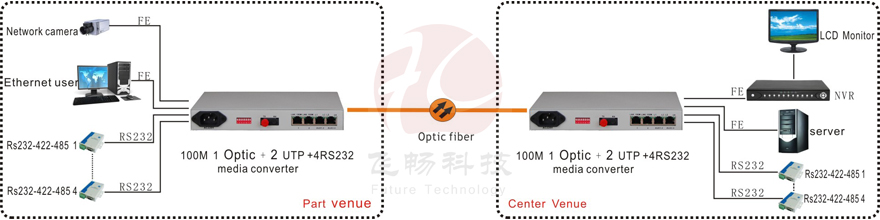

Application Scheme

Applications
