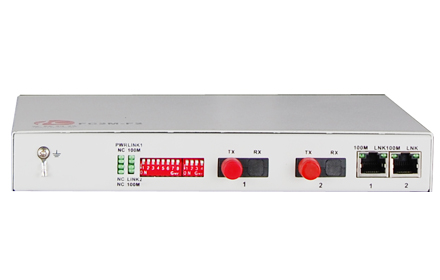

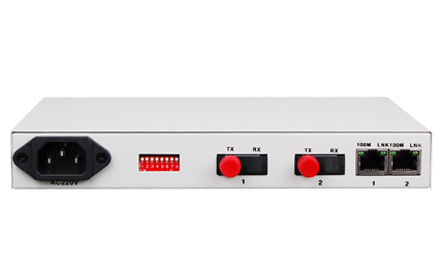

1+1 2GE Fiber Media Converter

Type:FC2M-G2b Message

Description:2*1000 Base TX ports ，2*1+1 Backup Optic fiber,main optical fiber broken ，switch to the backup fiber

Product Description

                   The device provides 1-2Channel 10M/100M/1000M Gigabit Ethernet interface(1000Base-T), master fiber interface and backup interface. 2Channel Ethernet interface is switch interface, can support VLAN.


Functional Properties

? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

? Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function  ensures

      that the business will never break;

? Device provides 4 Ethernet UTP, 2 Ethernet optical port

?   Support full-duplex and half duplex network communication, with auto-negotiation capability;

?   The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied  with IEEE802.10 protocol

?   2*1000 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of  4 group network

      business independently.

?   Division of VLAN base PORT, this method does not affect the remote device

?   802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

?   Device provides Console port, supports Terminal control device

?   Ethernet port priority setting

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u Gigabit Ethernet Interface (10/100/1000M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

   Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

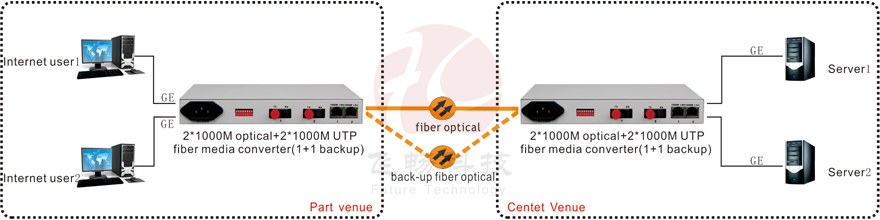

Application Scheme

Applications



DataSheet Download
?
