Products center

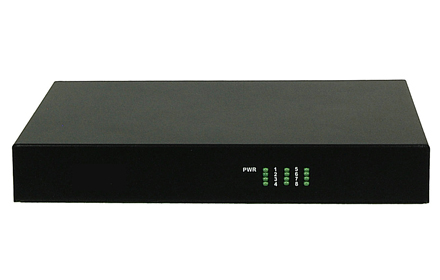

1*GE+8*1000 base-S/LX Ethernet Switch

Type:FC8M-G1 Message

Description:1*GE+8*1000 base-S/LX Ethernet Switch，can ever under 8 fiber direction FE fiber media converter

Product Description

             This series of products is the IEEE802.3 Ethernet media converter can be achieved between two media 8 road 1000base-FX and road 1000base-T 1 medium conversion or extension of the network transmission distance mainly used for optical fiber network distance (20/40/60/80/120) transmission the transmission rate and full support for 10/100/1000M for 1-8 road optical Ethernet aggregation to route 1 Gigabit Ethernet port of the occasion.



Functional Properties

Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

Ø   Device provides 1 Ethernet UTP 8 Ethernet optical port

Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied with IEEE802.10 protocol

Ø   Division of VLAN base PORT this method does not affect the remote device

Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

Ø   Support the QinQ and MAC-In-MAC VLANS .



Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm 1550nm

    Interface rate:              100 M half/full duplex

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

Application Scheme

Applications



DataSheet Download
?
