Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

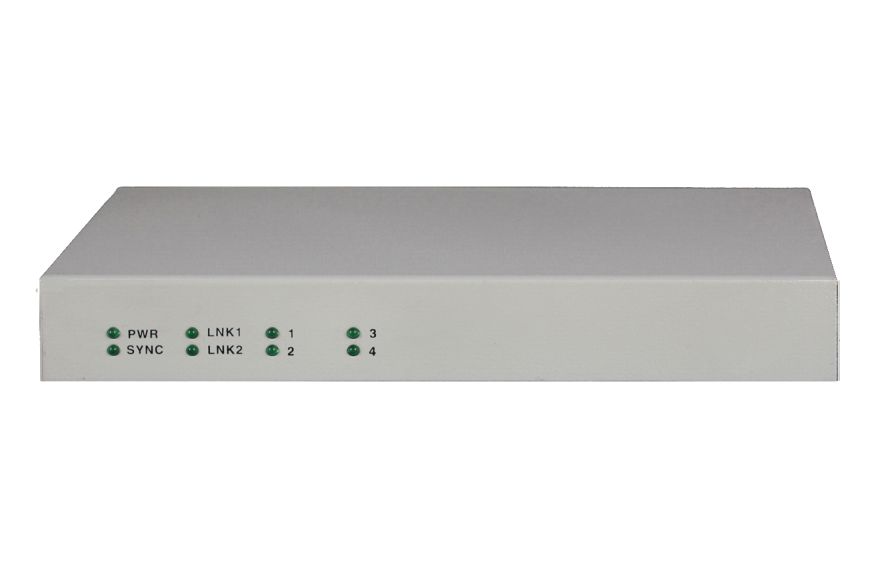

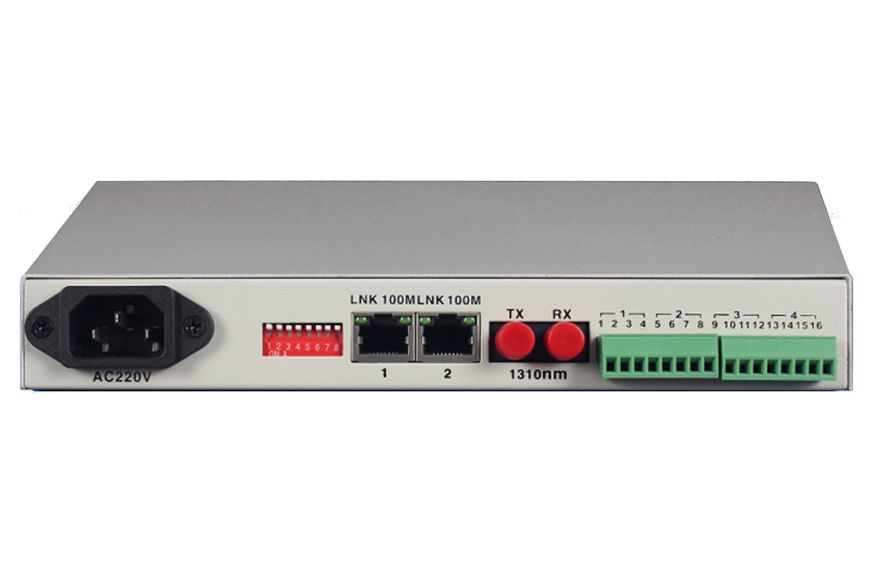

4 Channel RS232/422/485 Fiber Modem

Type:FCP-R4/U4/D4 Message

Description:4 Channel RS232/422/485 Fiber Modem ，Can be asynchronous transmission from serial data 0-115200 baud rate adaptive

Product Description
               4RS232/485/422 Fiber Modem provides 4Channel RS232/485/422 transmission on fiber. The product breaks through contradictions between traditional serial interface communication distance and communication rate besides it also can solve electromagnetic interference ground ring interference and lightning damage. The device greatly improves reliability security and confidentiality of data communication. It is widely used for various industrial control process control and traffic control occasions especially for Bank and Power and other sectors and systems which have special requirements of electromagnetic interference environment. RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-115200Kbps baud rate.

Functional Properties
Ø based on self -copyright IC
Ø Support 3 line RS232 (TXDRXDGND) support for flow control CDDSRCTS

Ø Have three Loop Back Mode: E1 interface Loop Back (ANA)、RS232/485/422 interface Loop Back(DIG)、

      Command the remote RS232/485/422 interface Loop Back(REM)

Ø RS232/RS485/RS422 supports hot-plug supports DTE or DCE device interconnection
Ø RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud  rate
Ø Have pseudo random code test function easily line opened can be used as a 2M BER Tester

Ø Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV  Impedance (2 Ohm)

      CM(Common Mode): 6KV Impedance (2 Ohm) standard

Ø AC 220V DC-48V DC+24V DC Power and Polarity-Free

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u   Serial interface

    Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-422 RS-422 (ITU-T V.11)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

    Serial Interface

    RS-422: TXD+ TXD- RXD+ RXD- Signal Ground

    RS-485 4 wires: TXD+ TXD- RXD+ RXD- Signal Ground

    RS-485 2 wires: Data+(Correspond TX+) Data-（Correspond TX-） Signal Ground

    RS-232: RXD TXD Signal Ground

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         216X140X31mm(WXDXH)

    Simple packaging:   274X193X84mm(WXDXH)

    Piece Weight :      1.2KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

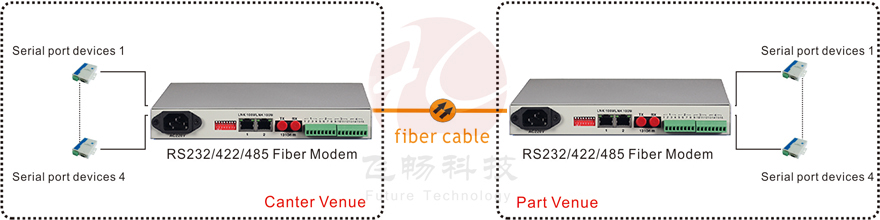

Application Scheme

Applications

DataSheet Download
?
