Products center

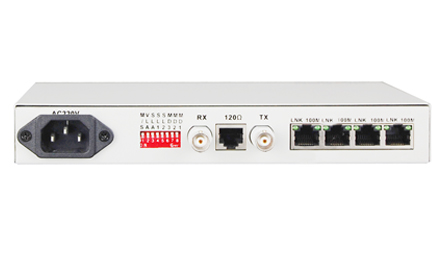

Unframed E1-4FE Converter

Type:FCC-E1F4 Message

Description:1channel unframed E1 - 4FE converter ，With E1 loopback detection function

Product Description
             E1-4ETH interface converter is based on FPGA. The device provides the transition between ITU-T G.703 (E1) standard unframed E1 interface and 10/100Base-T interface. It is a high capability, self-adaptable long-distance Ethernet bridge. The product is small and with low cost. It is widely used in connecting between WAN and LAN, monitoring, etc
Functional Properties
? Based on self -copyright  IC

?   Can realize monitor and control of remote equipment, OAM management data did not take up users’

      timeslot and save E1 bandwidth

?   Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop  return;
?   Have indicator  when the device is power-off or E1 line is broken or lose signal;
?   Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
?   The Ethernet interface supports jumbo frames (1916 Bytes);
?   4Channel 10M/100M Ethernet interface can isolate each other to realize communication independently;

?   Ethernet interface supports10M/100M, half/full duplex auto-Negotiation and AUTO-MDIX (crossed line and  straightly

      connected line self-adaptable );

?   Provide 2 clock types: E1 master clock and E1 line clock;

?   Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

      Ethernet interface Loop Back(REM)

?   Have pseudo random code test function, easy the installation and maintenance;
?   Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
?   Have Ethernet monitor self-reset function, the equipment will not dead

?   Ethernet interface supports the counters of receiving and transmitting frame, receives wrong frame counters.  E1 interface supports

      the counters of receiving wrong frame;

?   Realize monitor of remote equipment temperature and voltage from local equipment;
?   Support SNMP Network Management;
?   Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)
Technical Parameters
u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

    Piece Weight: 1.2KG

u  Working environment

    Working temperature: -10°C ~ 50°C

    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)


Application Scheme

Applications


DataSheet Download
?
