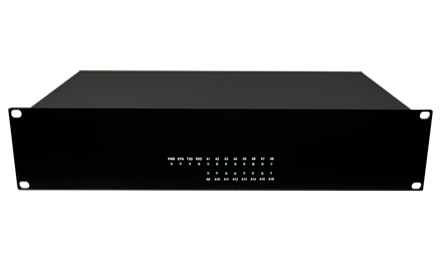

1~16 XLR broadcast audio fiber Multiplexer

Type:FCA-A16K Message

Description:1-16 channel audio Digital Optical, 24bits sampling, sampling precision 128K, XLR audio interface.

Product Description
  1-16 integrated multiplexing audio optical transmitter / receiver using digital coding technology, audio interface XLR (XLR), can be audio signals, data signals, switch signals and Ethernet signals through a single-mode fiber achieve long-distance two-way transmission, the maximum signal can be transmitted without distortion-free relay 100Km. Audio interface with 24Bit AD / DA, 128K sampling, studio-level transmission quality.The fiber audio multiplexer is composed of optical transmitter and optical receiver, can be Set to 8 channel bi-directional audio and 16 channel unidirection audio.
Functional Properties
? All-digital fiber optic transmission platform, multi-service platform with flexible configuration
? Audio interface XLR balanced XLR interface, audio power supply for the high-power toroidal transformer, + - 18V power supply, high dynamic range;
? Provide ordinary desktop mini-desktop, centralized card rack in various ways
? Data interface and audio interface provides three mine-protected, through the ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
Single fiber transmission, optional dual fiber
? Can receive no light is detected, the remote device is a power failure or fiber cut
? Audio using 24Bit AD / DA, 128K sampling, studio-grade transmission quality
? Provides bi-directional asynchronous data (forward and reverse)
? Asynchronous data transfer rate than 110-115.200Kbps
? Asynchronous data for RS232 / RS485 / RS422 / Manchester code.

Technical Parameters
u Fiber
Number of Fiber Ports: 2
Optical Wavelength:
850nm/1310nm for multi- mode optical
1310nm/1550nm for single-mode optical interface
Fiber Core: Single/Dual fiber core
Connector: FC/SC/ST/LC(SFP)
Distance : 20km-120km
Typical output power:
single mode 1310/1550nm: >-9dBm
multi-mode 850nm:>-18dBm
multi-mode 1310nm:>-25dBm
Receiver Sensitivity: -28dBm~- 40dBm
u Audio
Signal level: 0.5-4Vp-p
Input / output impedance: 600Ω (unbalanced or balanced)
AD / DA-bit wide: 24Bit
Sampling frequency: 128K
Bandwidth: 20Hz-20KHz
Total harmonic distortion: <1%
Noise ratio (SNR): > 85dB
Connecting terminal: XLR (XLR) balanced interface
u Working environment
Working temperature:   -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
MTBF： ＞100,000 hours
