Fiber-32Voice + 4E1 + 4GE + 4*Serial Multiplexer

Type:FCP-O32E4G4R4/FCP-S32E4G4R4 Message

Description:The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interfa

Product Description
  The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interface can be used as RS232/RS485/RS422 asynchronous data /TTL signal/Dry Contact signal and other transmission channels, the application is very flexible.
Functional Properties
◆ Based on independent intellectual property rights of integrated circuits;
◆ Equipment to provide the main optical fiber interface and backup fiber interface,dual optical port backup function to ensure that business never interrupted;
◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recoveryand smooth phase-locked technology;
◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface,FXO port plug into PBX,FXS port is connected to the user's telephone;
◆ Voice FXO/FXS access, support for caller ID / reverse polarity billing / fax function;
◆ Both sides of the device support FXO+FXS hybrid access;
◆ Provide 4 expansion interface, you can extend 1 ~ 4 asynchronous data, such as RS232/RS485/RS422/TTL, etc .; or 1 to 8 dry contact;
◆ Gigabit Ethernet bandwidth for the wire speed 1000M, interface 10/100/1000M, full/half duplex fully adaptive, support VLAN division;
◆ 4 Gigabit Ethernet interface for the Switch port, can also be divided into VLAN, can be set to 4 channel logic isolation;
◆ Each Ethernet port supports Auto-MDIX (cross / direct line adaptation);
◆ No relay transmission distance of up to 2 to 100 km;
◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc .; support AC+DC; AC+AC; DC+DC and other dual power backup mode;
◆ Supports Console network management and independent SNMP network management mode;
◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
Technical Parameters

◆  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆  Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆  Dimension

    Product Size:         216X140X31mm(WXDXH)

       Piece Weight :    1KG

◆  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

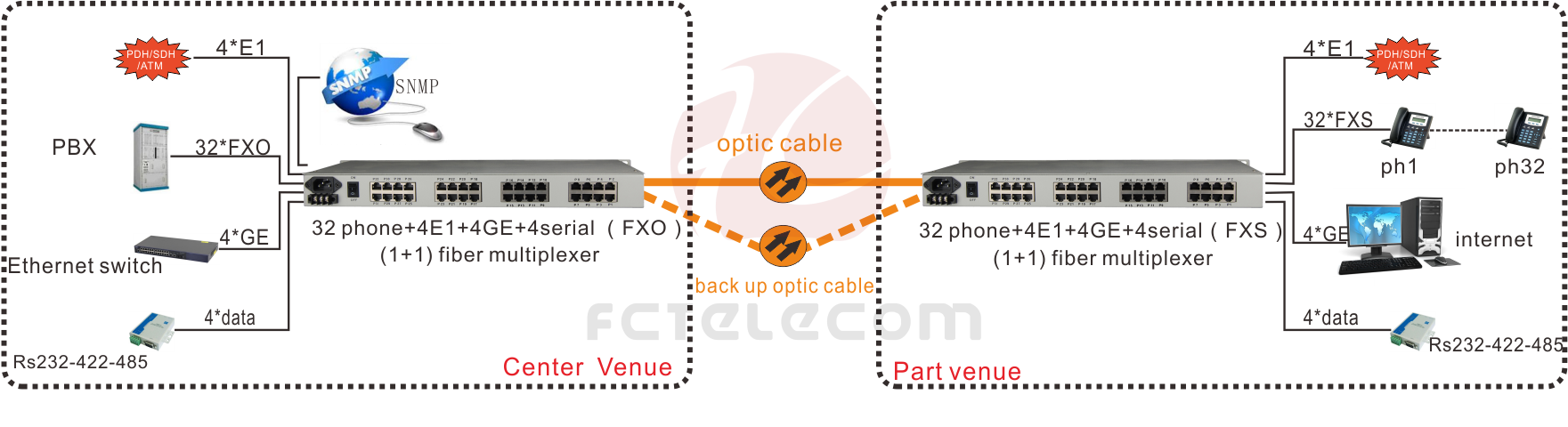

Application Scheme
