Products center

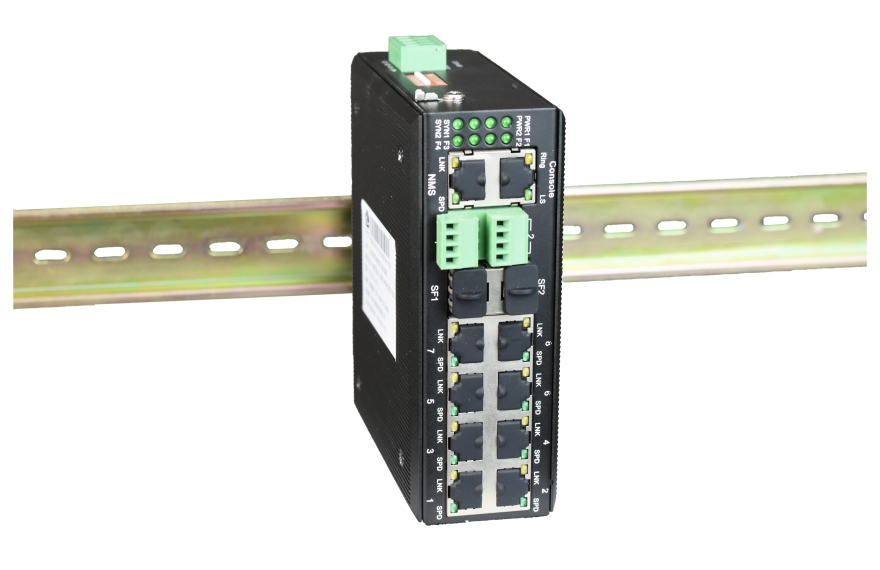

Managed 8FE to 1000base-X Fiber Media Converter

Type:FCMG-XF8N Message

Description:This series of products is industrial grade 8*100base-T to 1000base-X optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/100km) transmission. This product share the 1000M bandwidth each channel bandw

Product Description
    This series of products is industrial grade 8*100base-T to 1000base-X optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/100km) transmission. This product  share the 1000M bandwidth each channel bandwidth can be set by Console (Ethernet interface can support VLAN into exchange namely logic) isolation; 1 Console port.
    Ethernet switch chip+FPGA scheme based on OAM frame with remote management function support Console/WEB/Independent SNMP Manager and 2U can also be inserted with SNMP network 1*GE optical transceiver card energy management to the equipment in SNMP software;
Functional Properties
◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
◆ Equipment provides 8*FE electrical port 1*1000base-X port an optional Console / SNMP management port;
◆ Electrical interface (RJ45 interface) support 10/100M adaptive full/half duplex mode MDI/MDI-X automatic detection;
◆ Optical interface to support multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode SC/ST/FC/LC interface optional;
◆ With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;
◆ Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
◆ Equipment for the Ethernet switch chip + FPGA program with remote OAM management frame function with 2U card with SNMP network management 1 1 optical transceiver card interconnection SNMP software can manage to the device; can also support the Console (CLI) / WEB / independent SNMP network management;
◆ The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
◆ Support a wide range of 9-55V AC and DC power input;
◆ Support internal isolation redundant dual power input;
◆ Power supply support overload protection anti-reverse protection;
◆ Meet the requirements of industrial four electromagnetic compatibility;
◆ Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
◆ No fan efficient cooling reduce repair time;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
Application Scheme
DataSheet Download
?
